FLATBED DIE CUTTING MACHINE
High Precision, Maximum Flexibility.Engineered for complex shapes, multilayer materials, and fast job changeovers.
PRODUCT
OVERVIEW

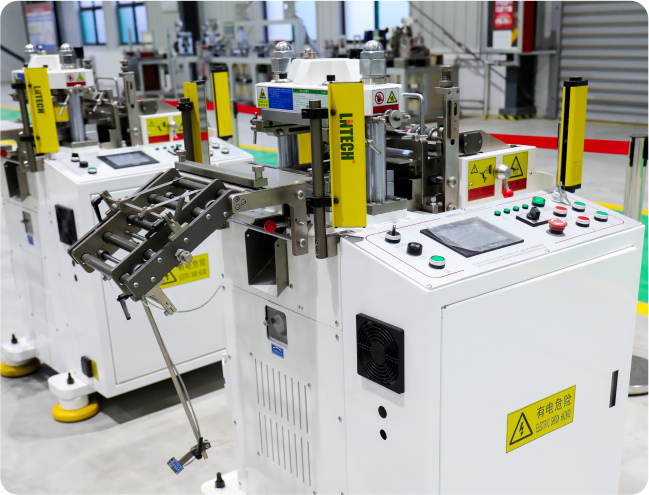

HOACO flatbed die cutting machines are engineered for precision and flexibility. Unlike rotary systems, flatbed presses use vertical cutting action to deliver higher force, perfect for thick or multilayer materials. With customizable features and fast tooling change, they are ideal for medical, electronics, adhesive, and specialty converting industries.
| MODEL | HXM-2 | HXM-4 | DC4565 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| # of Support Post | 2 | 4 | 4 | ||||||||
| Max Cuts/Min | 300 | 200 | 120 | ||||||||
| Max Cutting Force | 50KN (5 ton) | 120KN (12 ton) | 120KN (12 ton) | ||||||||
| Max Cutting Size | 200x180mm | 420x320mm | 450x650mm | ||||||||
| Stroke Travel Distance | 24mm | 28mm | 30mm | ||||||||
| Max Web Width | 200mm | 420mm | 450mm | ||||||||
| Feeding Precision | ≤ 2% mm | ≤ 2% mm | ≤ 2% mm | ||||||||
| Dimension | 1200(L)*910(W)*1250(H)mm | 1450(L)*1550(W)*1450(H)mm | 1700(L)*1300(W)*1500(H)mm | ||||||||
| Weight | 1.0Ton | 2.3Ton | 2.6Ton | ||||||||
| Power | 3P5W 380-400V,5KW | 3P5W 380-400V,8KW | 3P5W 380-400V,10KW | ||||||||
| Safety | Safety Curtain, CE Certified | ||||||||||
| Compressed Air Pressure | 0.55-0.65Mpa | ||||||||||
| Operating Modes | Jog I Single I Continuous I Project | ||||||||||
| Tool Acceptance | Steel Rule, Male/Female Reciprocating, Flexible a*Chem-Etch* | ||||||||||
WORKING PRINCIPLE
The cutting die moves vertically against the material on a flat surface, ensuring uniform pressure and precise cuts for complex geometries and multilayer structures.
KEY FEATURES
High Cutting Force
Vertical press ensures uniform pressure for thick or multilayer materials
High Precision Servo Control
Servo-driven system for accurate, repeatable cuts
Quick Die Change
Flat dies allow rapid changeover, reducing downtime
Vision Registration Option
Camera-based registration ensures precise die-to-pattern alignment
Cleanroom Compatible
Designed for medical production environments
TYPICAL APPLICATIONS
Foam Wound Dressings
Hydrocolloid Dressings
Medical Adhesive Patches
Diagnostic Test Strips
Electronic Insulation Components
Industrial Adhesive Materials
WHY CHOOSE
HOACO
With over 20 years in the converting industry, HOACO delivers high-performance flatbed die cutting solutions worldwide. Our machines combine precision, flexibility, and fast tooling change to meet the needs of medical, electronics, and industrial production lines. Custom options and vision registration are available to ensure consistent, high-quality output.
CUSTOM
SOLUTIONS
We understand that every production line is unique. Our engineering team works closely with you to design custom rotary die cutting solutions tailored to your specific needs:
- Multi-station die cutting (combining slitting, laminating, and die cutting in one line)
- Laser die cutting integration for complex shapes (no die tooling costs for short runs)
- In-line inspection systems (100% quality control with vision cameras)
- Specialized material handling (anti-static, heat-resistant, or food-grade configurations)
PRE-SALES CONSULTING
INSTALLATION & TRAINING
PREVENTIVE MAINTENANCE
24/7 TECHNICAL SUPPORT
