RDC + FLEXO PRINTING MACHINE
PRODUCT
OVERVIEW
We offer precision cutting, rotary, flatbed screen and roller printing services to deliver high-quality, long-lasting results that enhance your products and leave a professional, lasting impression.
| Printing Width | Min Repeat | Max Repeat |
|---|---|---|
| 250mm/350mm | 190.5mm(Z60) | 508mm(Z160) |
| Mechanical Speedh | Ink deposit | Ink Deposit Accurate |
| 60m /min | 1-2um | ± lum |
KEY ADVANTAGES
Integrated Process Advantages
Combining Rotary Die Cutting (RDC) with Flexo Printing enables simultaneous printing and die cutting, enhancing production efficiency and precision. This integration streamlines the process, supports real-time quality control, and eliminates the need for pre-printed materials, leading to significant cost savings.
High Precision & Wide Applicability
Flexographic printing offers high precision and can be applied to almost any substrate, including plastic films, metallic films, cellophane, and paper. This mature and reliable technology is widely used for labels and packaging products.
Smart Operation & Space-Saving Design

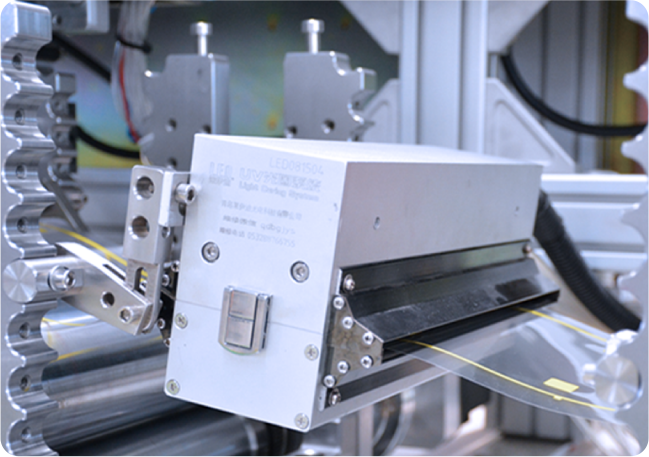

The machine is easy to operate, with the flexo unit mounted between the RDC stations for a compact, space-saving design. It supports UV and water-based inks, and is equipped with LED UV curing and infrared hot air curing systems for fast drying, enhancing production efficiency.
Low Cost & High Reliability
The system has low plate costs and uses cost-effective water-based inks. The combination of continuous printing and die cutting ensures stable and reliable production, reducing downtime and material waste.

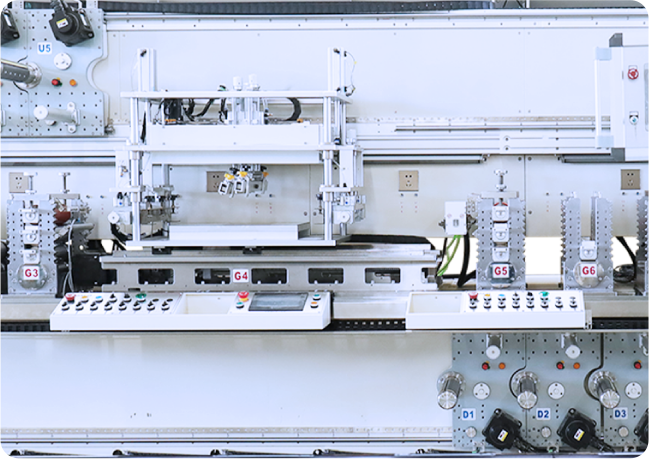

RDC + FLAT SCREEN PRINTING MACHINE
PRODUCT
OVERVIEW
Flat screen printing uses a mesh screen as the plate, with a photosensitive process forming the stencil. It involves five key elements and works by forcing ink through open image areas onto the substrate via a squeegee.
| Model | Printing area | |
|---|---|---|
| 250/350/450/550(mm) | 250*350/350*450/450*550/550*650(mm) | |
| Mechanical Speedh | Ink deposit | Screen Mesh |
| 10-30m/min | 5-100um | 80-508(Mesh) |
KEY ADVANTAGES
Continuous Synchronized Printing & Cutting
This system synchronizes flat screen printing with the web feed and integrates directly onto the rotary die cutting platform for continuous printing and die cutting in one seamless process.
Medium‑Speed Precision Performance
Balanced throughput and precision make this machine ideal for applications requiring consistent print quality and registration accuracy.
Supports Multiple Ink Types
Supports UV, solvent-based, giving flexibility across substrates and product applications.
Low Cost of Ownership
Short screen-making lead times, low screen costs, and reusable screens, combined with a simple machine structure and minimal maintenance requirements, contribute to low overall operating costs.
Easy to Operate & Flexible Configuration
Flat screen printing is intuitive and easy to operate. The printing unit can be installed on any station of the multi‑station RDC machine, with an independently controlled touchscreen interface for streamlined operation.
Rich Color & Thick Ink Layer
Produces thick, saturated ink layers with strong adhesion and excellent light resistance, often eliminating the need for additional lamination. Optional LED UV curing offers cold curing, low energy consumption, and long service life.
TYPICAL APPLICATIONS
Medical components
wearables, sensors, adhesives
Electronic components
RFID, labels, flexible circuits
Automotive & energy components
gaskets, seals, flexible parts
Packaging & consumer goods segments

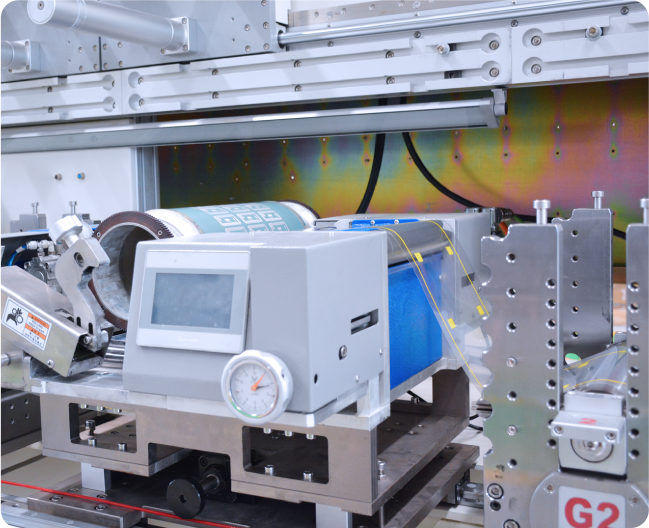

RDC+ROTARY SCREEN PRINTING MACHINE
PRODUCT
OVERVIEW
Rotary screen printing machines achieve unique effects that cannot be realized by flexographic, offset or gravure printing processes by obtaining thick ink layers or varnishes in a single print.
| Model | Printing Width | Min Repeat | Max Repeat |
|---|---|---|---|
| 250/350/450/550/650 | 250/350/450/550/650(mm) | 304.8mm (96T) | 609.6mm (192T) |
| Mechanical Speed | Screen Mesh | Ink deposit | Ink Deposit Accurate |
| 60m /min | 75-400(Mesh) | 6-280um | ± lum |
KEY ADVANTAGES
High Speed Continuous Operation
The rotary screen printing unit enables high-speed continuous printing, ideal for high-volume production.
Flexible Modular & Multi Color Capability
Movable printing units can be installed between RDC stations, supporting multi-color printing for diverse needs.
Long Lasting & Cost Efficient Screen Unit
The screen can be reused 10-20 times, reducing operating costs.
UV LED Curing Advantages
The UV LED curing system is energy-efficient and environmentally friendly, supporting high-speed production.
UV Ink Performance Benefits
UV ink offers excellent abrasion, water, and solvent resistance, with instant curing for high-speed production.
CUSTOM
SOLUTIONS
We understand that every production line is unique. Our engineering team works closely with you to design custom rotary die cutting solutions tailored to your specific needs:
- Multi-station die cutting (combining slitting, laminating, and die cutting in one line)
- Laser die cutting integration for complex shapes (no die tooling costs for short runs)
- In-line inspection systems (100% quality control with vision cameras)
- Specialized material handling (anti-static, heat-resistant, or food-grade configurations)
